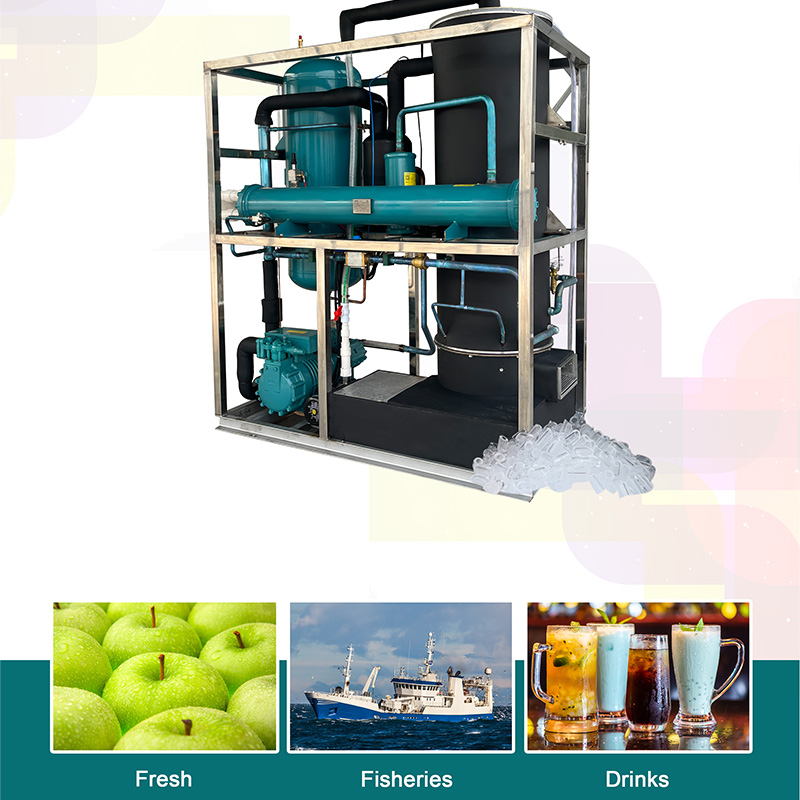

Ice Tube Machine

Short Description:

BOLANG’s ice tube machine has been recognized by the public for many years.The ice tube machine is named after its irregular length hollow tube shape for producing ice cubes. At present, ice tube is the most common edible ice, with crystal clear ice cubes and good melting resistance, which has won the favor of customers. Customers in different regions have different habits of using edible ice, resulting in some regions and countries having a greater preference for ice tube. Pipe ice is widely used in food storage and preservation, medical applications, KTV, banquet halls, beverage preparation, hotels, bars, Western restaurants, fast food restaurants, cold drink shops, beer houses, and other places that require ice cubes.


Overview

Features

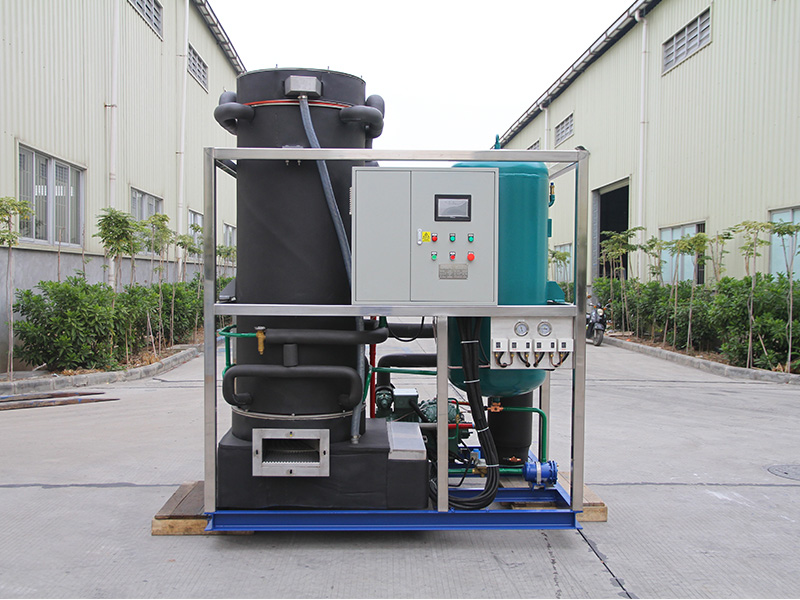

1完美的设计

1. Perfect design:The layout of all equipment components and accessories, as well as the reasonable assembly of pipelines, have a compact structure without crowding, and the operation and maintenance are very user-friendly. With years of experience in ice making, it is crafted with pure craftsmanship.

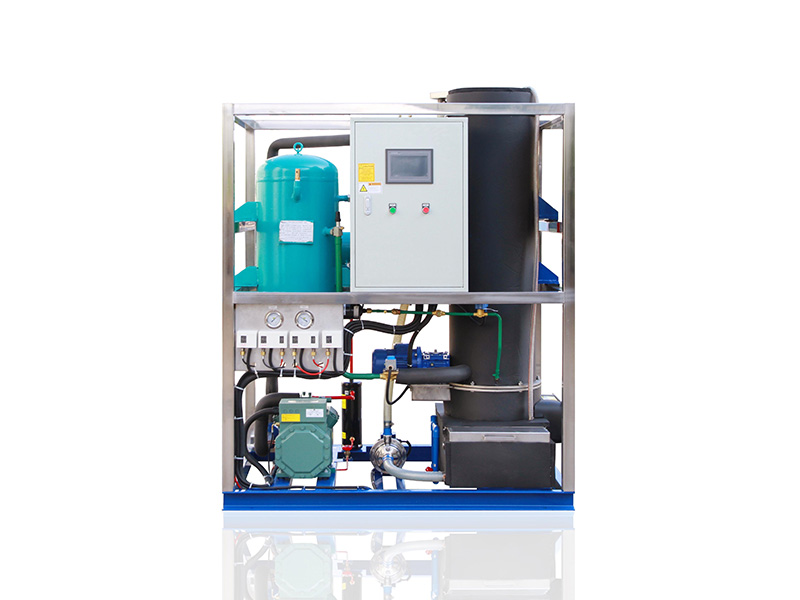

2. Efficient performance:The evaporators are made of special alloy materials combined with unique heat treatment processes, ensuring the optimal thermal conductivity of the evaporators. The evaporator adopts a large rounded excessive design, so that there are no dead corners for cleaning inside the equipment.

2高效的性能

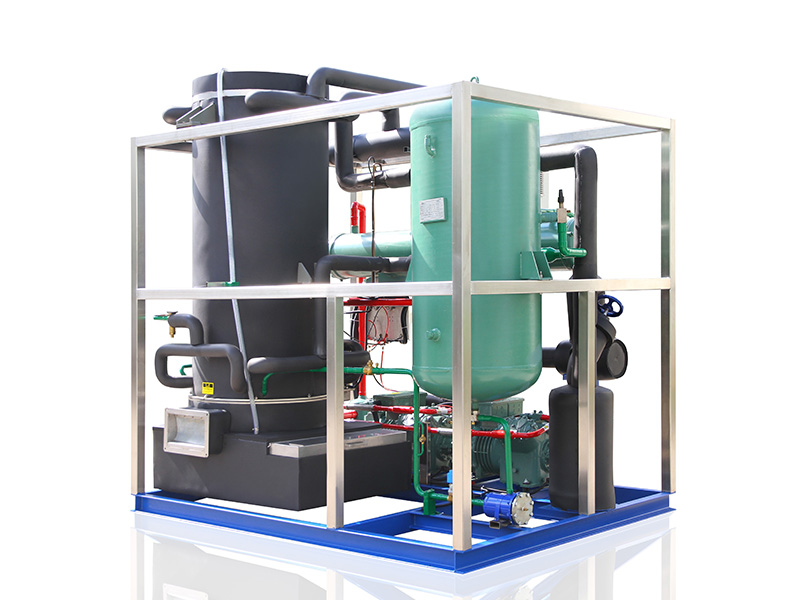

3稳定可靠

3. Stable and reliable: The design of the tube ice machine reduces unnecessary transmission components inside the equipment, making the tube ice machine equipment simpler and more reliable. The unit is generally equipped with various protections such as low water level, water flow, full ice, compressor high pressure, compressor low pressure, compressor oil pressure, etc. Ensure stable, reliable, and safe operation of the ice machine equipment, with continuous operation for over 30000 hours without any faults.

Parameters

Model BL-G10 BL-G20 BL-G30 BL-G50 BL-G80 BL-G100 BL-G120 BL-G150 BL-G200 BL-G300
Capacity(Tons/24hours) 1 2 3 5 8 10 12 15 20 30
Refrigerant R22/R404A/R507
Compressor Brand Bitzer/Refcomp Bitzer/Refcomp/Hanbell
Cooling Way Air/Water Cooling Water Cooling
Compressor Power (HP) 4 9 14(12) 28 44(34) 46(44) 56 78(68) 102(88) 156(132)
Ice Cutter Motor(KW) 0.37 0.37 0.55 0.75 1.1 1.1 1.1 2.2 2.2 2.2
Power of Circulating Water 0.37 0.37 0.55 0.75 1.1 1.5 1.5 2.2 2.2 1.5*2
Power of Cooling Pump(KW) 0.75 1.1 1.5 2.2 2.2 4 4 4 5.5 7.5
Cooling Tower Motor(KW) 0.18 0.37 0.55 0.75 1.5 1.5 1.5 1.5 1.5 2.2
Ice Machine Size L(mm) 1500/1500 1500/1500 1660/1660 1660 2200 2320/1450 2600/1450 2600/1600 2800/1600 4000/1700
W(mm) 1000/1100 860/1140 1000/1216 930 1900 1200/1200 1900/1200 1800/1354 2300/1354 2260/1500
H(mm) 1750/1750 2095/2120 2015/2320 2175 2550 2260/2645 1560/2897 1610/3447 2100/4537 2246/5222
Machinery Unit Weight(kg) 900 1400 1750 2070 3000 3200 tube ice maker part & refrigeration system are separate

For ice machine over 20t/day, please contact our salesman

*Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature
* Please request a specification for each machine type.
*Specification will be changed without any notification.

Application

食品保鲜

Food preservation

酒吧

Bar

餐厅

Restaurant

酒店

Hotel

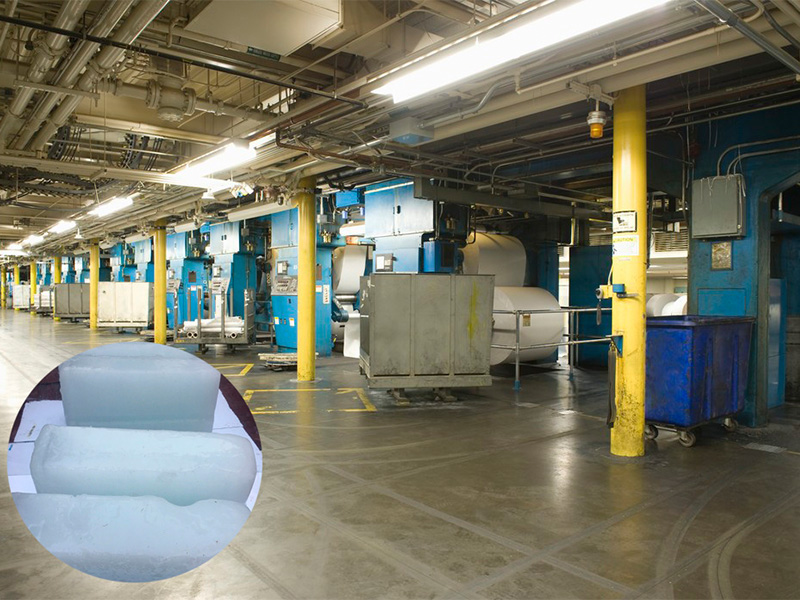

工业降温

Industrial cooling

温控混凝土

Temperature controlled concrete

Our Turn Key Service

1.Project design

1. Project design

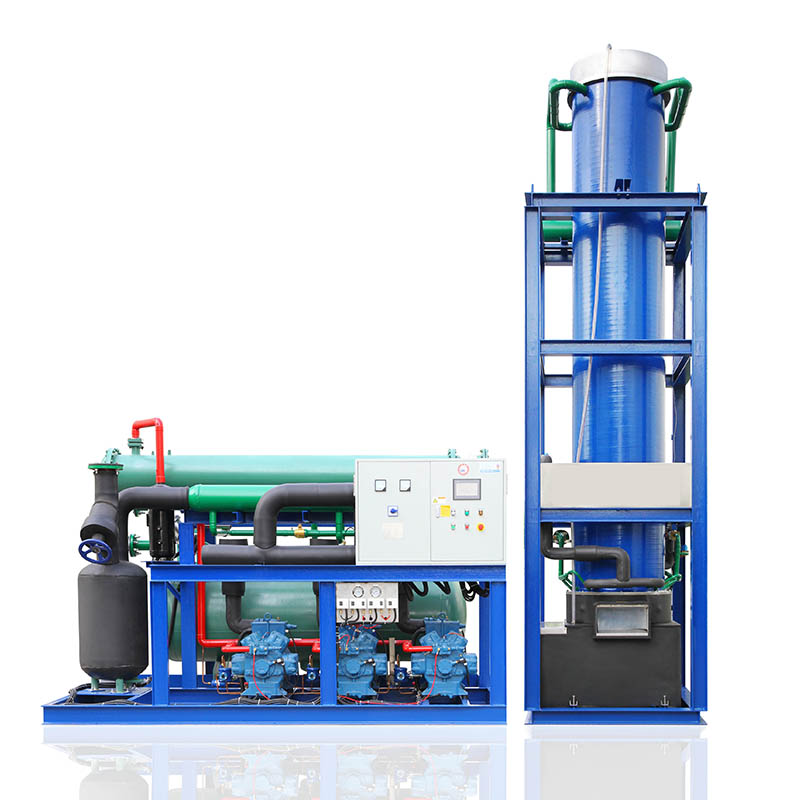

2.Manufacturing

2. Manufacturing

team5

4. Maintenance

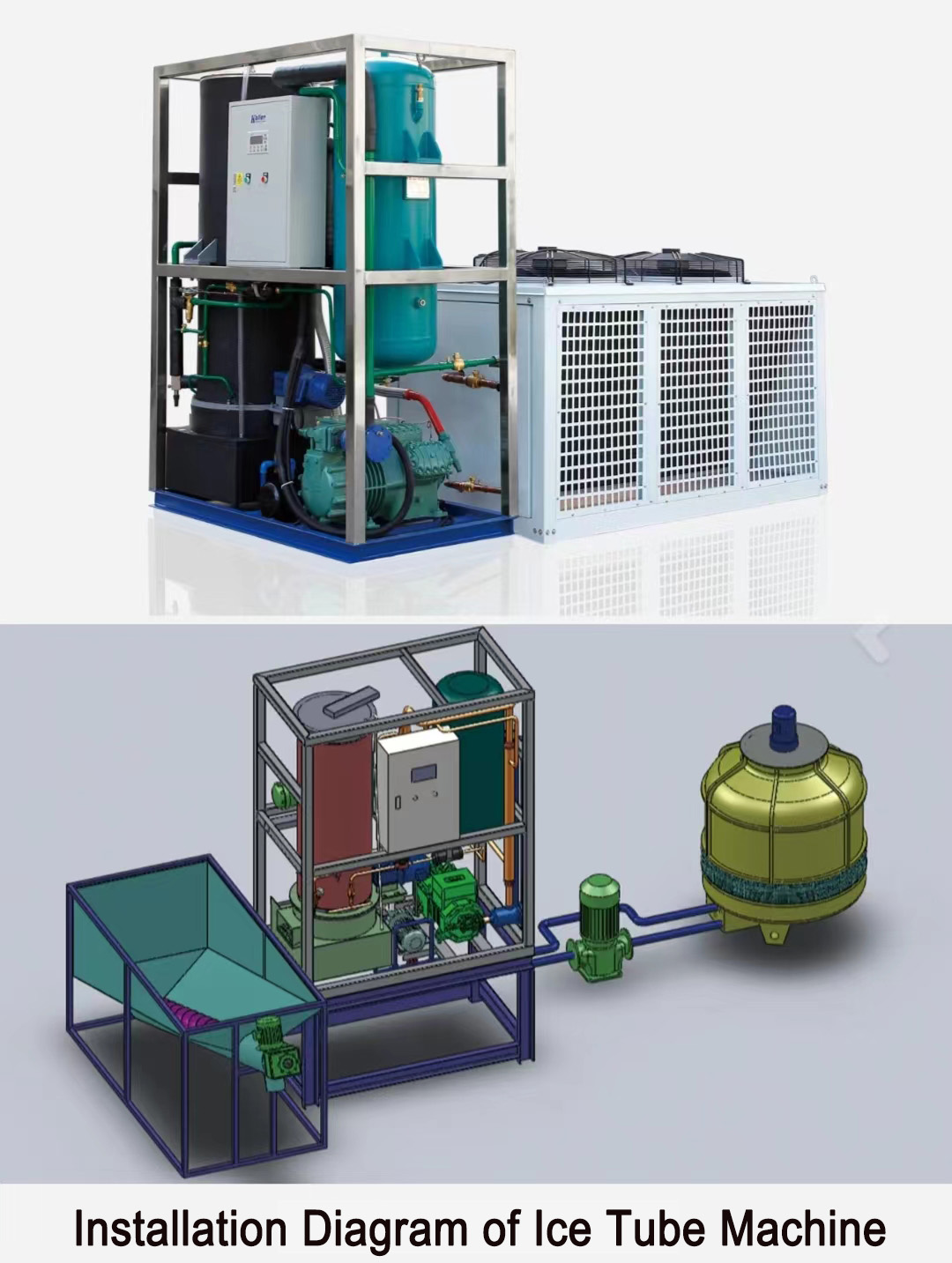

3.Installation

3. Installation
